The DF‐870 Automatic Folder is the perfect complement to Duplo’s existing line of tabletop folders. Utilizing the durable Duplo feed system, the DF‐870 offers fully automated setups, making it easier and faster to process jobs without any manual adjustments required.

The DF‐870 precisely folds documents such as brochures, menus, letters, and invoices at up to 241 letter‐size sheets per minute. Users can select from six of the preprogrammed folds for touchand‐go folding or customize their own for non‐standard folds. Cross folding for right‐angle folds is also possible. The DF‐870 has five popular sheet sizes (letter, legal, ledger, ½ letter, and ½legal) preprogrammed for quick setup and user convenience. Fold position adjustments are easily done via the control panel. Once the paper size and fold type are entered, the ejection roller automatically moves into position. With a friction feed system and adjustable paper and feed separator pressure controls, a wider range of paper stock up to 157 g/m² can be fed with increased accuracy and consistency.

FEATURES

• Automatic setting of fold plates and stacker roller
• Six preprogrammed popular folds
• Cross folding for right‐angle folds
• Fold up to 241 sheet per minute (LTR Size)
• Ascending and descending counters
• Custom Folding

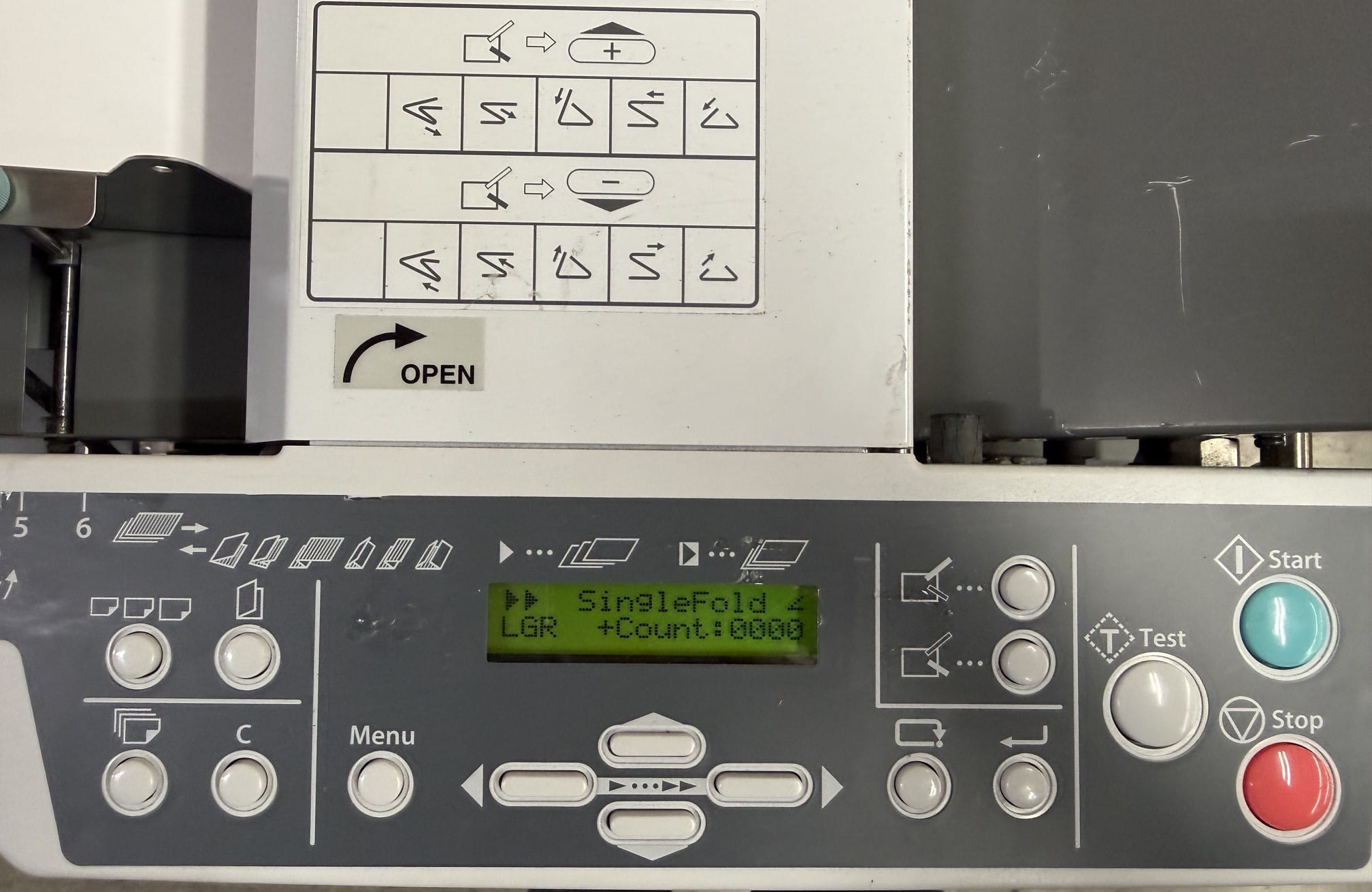

• Electronic fold plate adjustment
• Test button, feeds two sheets for inspection

SPECIFICATIONS

• Paper Size: 3.59″ x 5.04″ – 11.69″ x 17″
• Paper Weight: 52.3 – 157 gsm (Varies upon paper grain and fold type)
• Speed: Up to 241 sheets per minute (Letter size 80 gsm bond paper single fold)
• Feeding Tray Capacity: Up to 500 sheets 64 gsm
• Paper Type: Uncoated, some coated stocks
• Fold types: Single, double, half, irregular accordion, letter, accordion (Z), gate, custom, and cross folds
• Counter: Ascending and descending

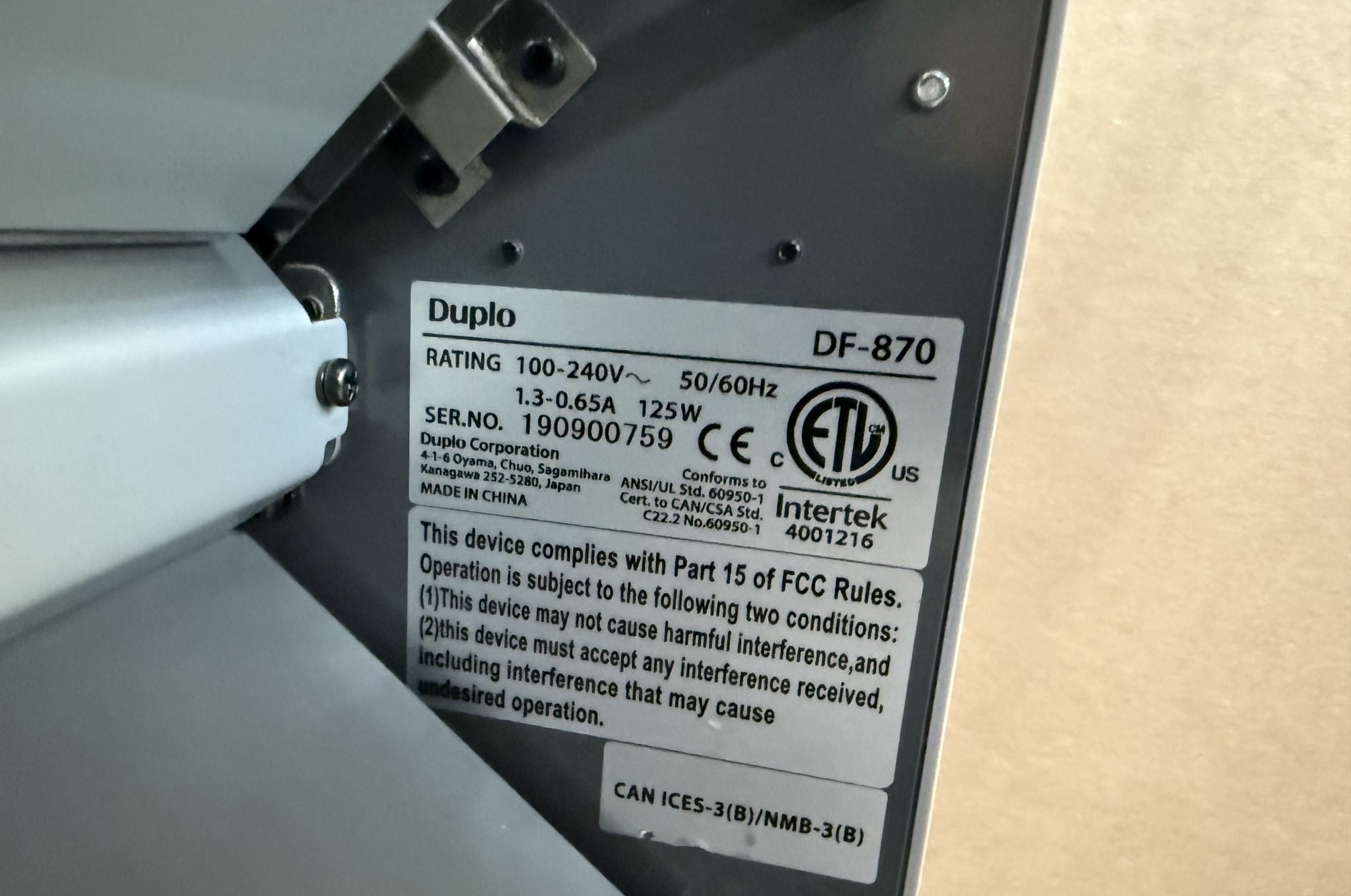

• Power Supply: 120 50/60Hz 1.3 – 0.65A 125W
• Dimensions (L x W x H): 35.4″ x 18.9″ x 21.07″
• Weight: 75 lbs.
