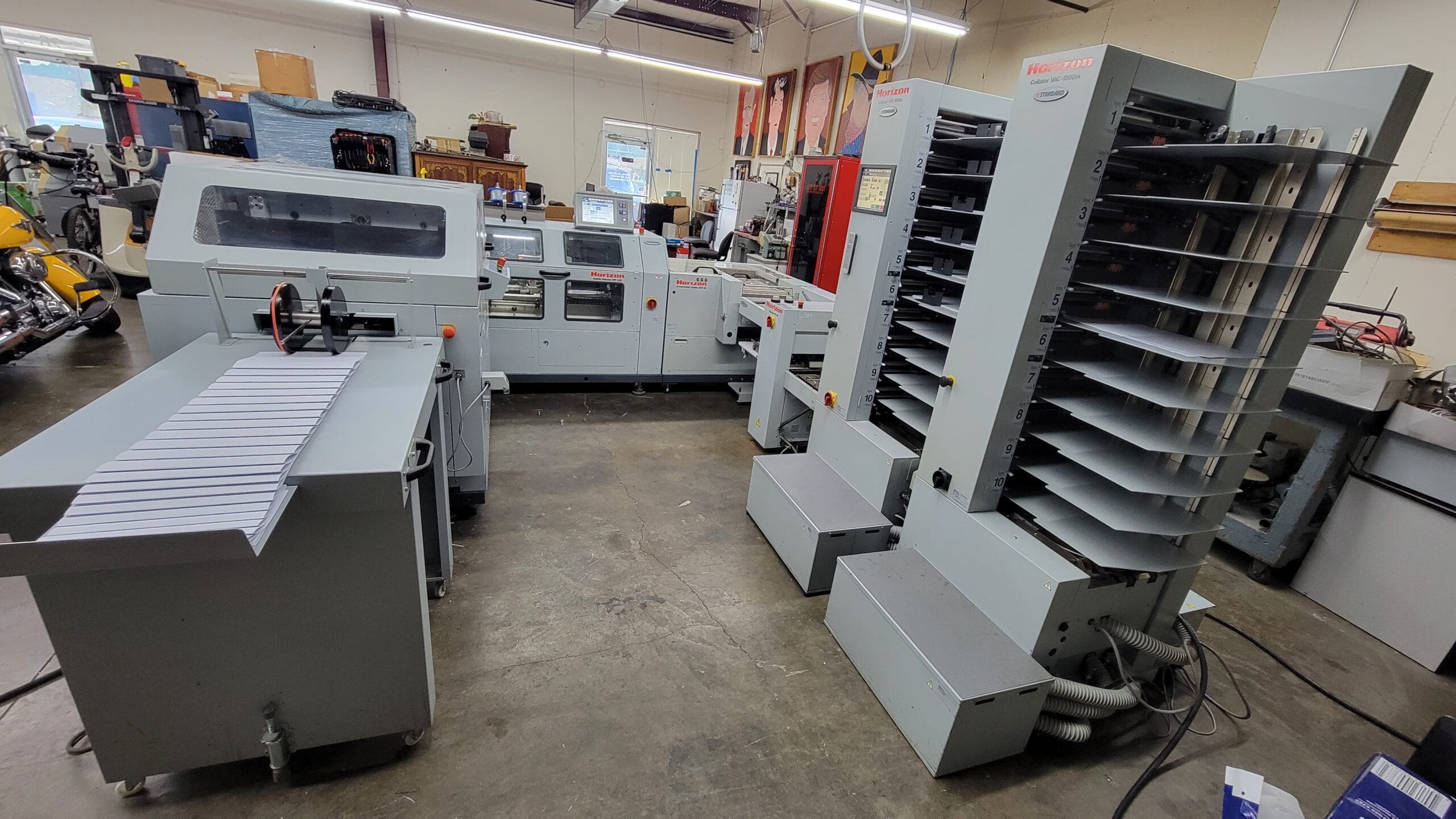

Take your print finishing to the next level with the Horizon StitchLiner 5500, a fully automated saddle-stitching system designed for high-volume, high-quality booklet production. Ideal for commercial printers, trade binderies, and on-demand production environments, this system combines flat sheet collating, scoring, folding, stitching, and three-knife trimming—all in one seamless workflow.

Key Features:

• Production Speed: Up to 5,500 booklets per hour, with quick-changeover capabilities for short, medium, and long runs.
• Touchscreen Interface: Intuitive icon-based control panel for fast setup and job recall (up to 100 jobs).

Modular Components:

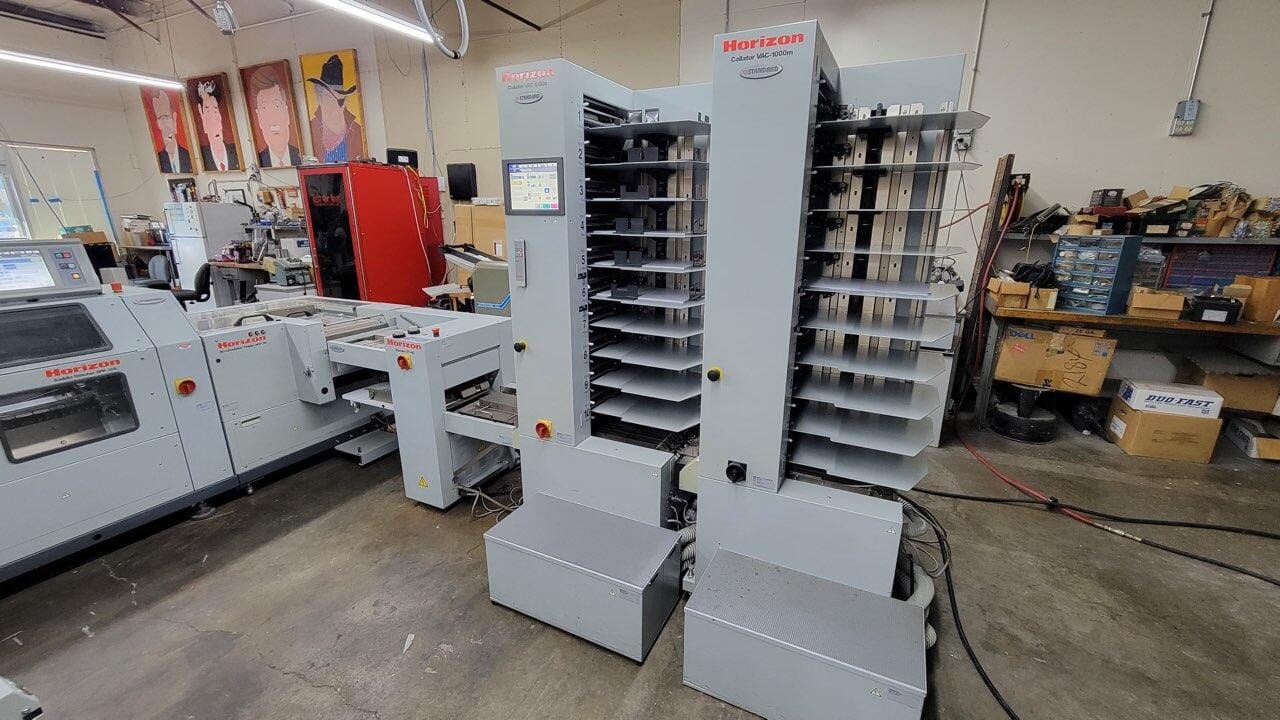

• VAC Collator Towers: Up to 60 stations for efficient sheet gathering.
• ACF-30 Accumulator/Folder: Plow-fold mechanism ensures tight, accurate folds.

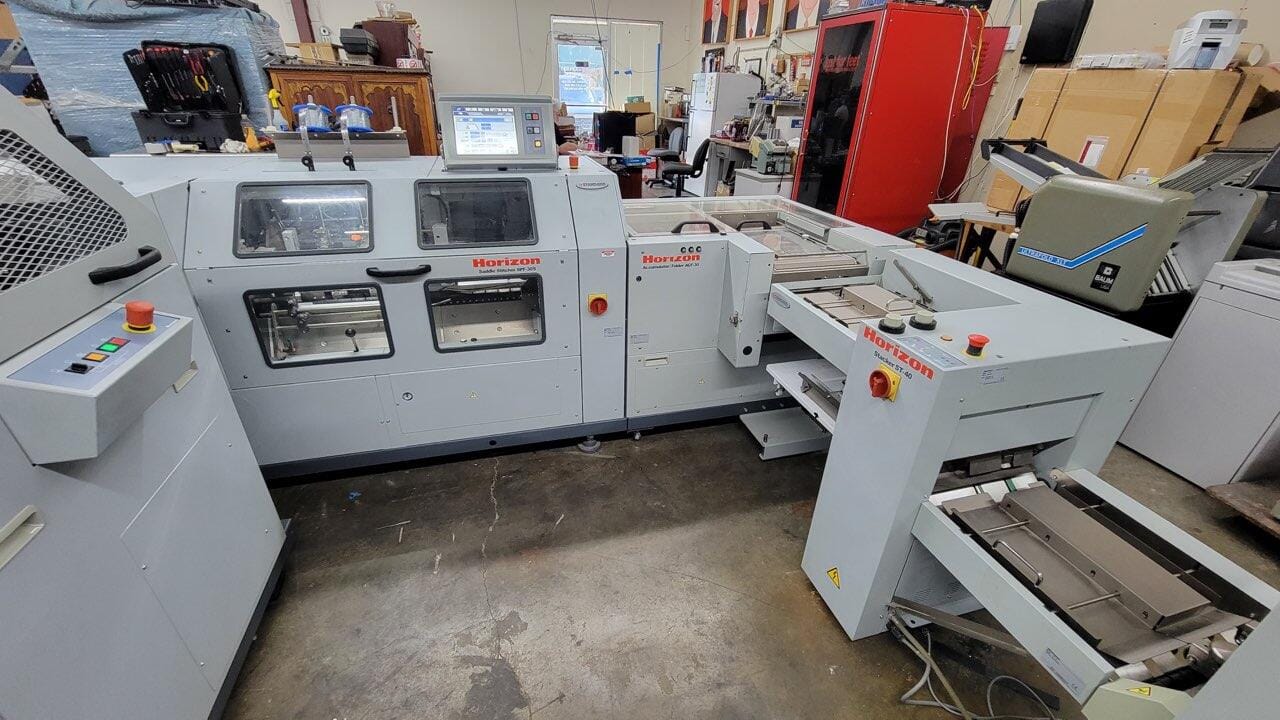

• SPF-30 Saddle-Stitcher: Handles booklets up to 10 mm thick with heavy-duty Hohner stitching heads.

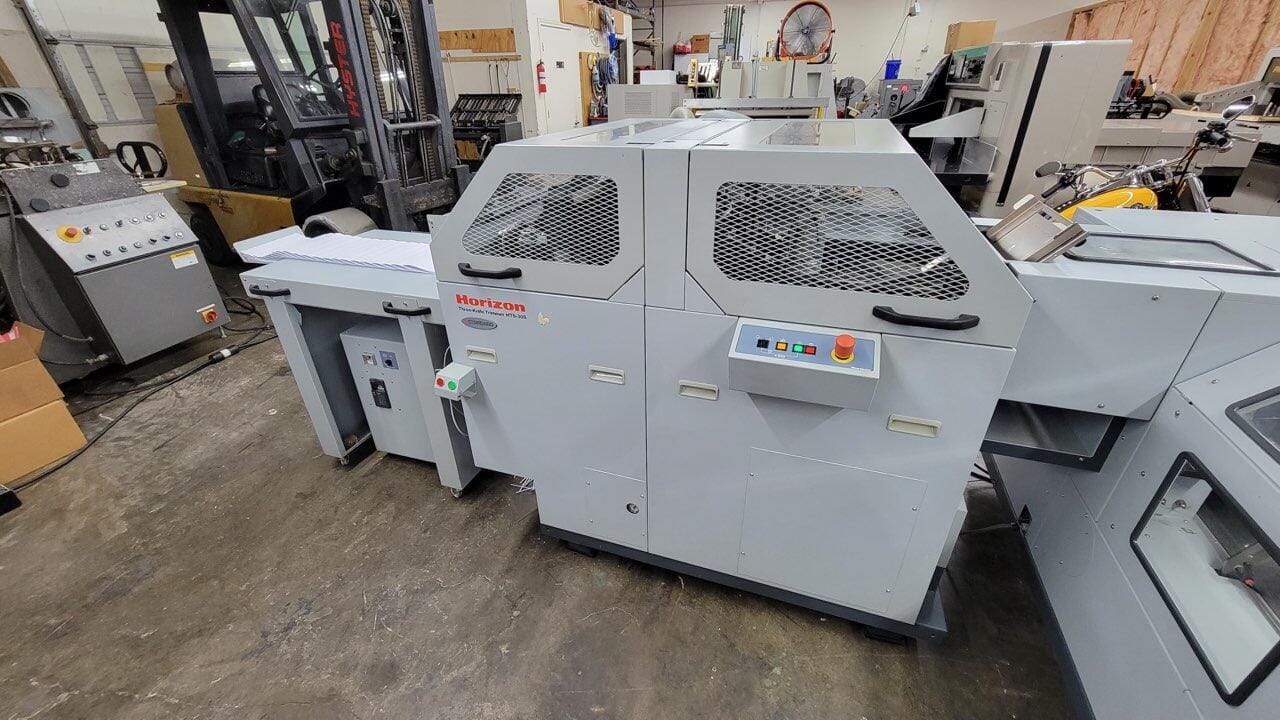

• HTS-30 Three-Knife Trimmer: Provides precise three-sided trimming with optional center-cut for two-up booklet production.
• ST-40 Stacker: High-capacity stacking and reject tray for uninterrupted operation.

Benefits:

• End-to-End Automation: Reduces operator workload and minimizes setup time.
• Compact U-Shaped Layout: Saves floor space and improves workflow visibility.
• Error Detection System: Ensures only correctly finished booklets are delivered.
• Optional Add-ons: Loop stitching kit, center-cut device, preset kicker, and trim waste blower available.

SPECIFICATIONS

• Sheet Size Max 350(W) x 500(L) mm (13.7″ x 19.6″)
• Sheet Size Min 140(W) x 206(L) mm (5.6″ x 8.2″)
• Sheet Weight Range Normal: 64 to 210 gsm / Coated: 80 to 210 gsm
• Booklet Size Max (before trim) 350 x 250 mm (13.7″ x 9.8″)
• Booklet Size Min (before trim) 140 x 103 mm (5.6″ x 4.1″)
• Trim Width 2 to 25 mm (0.08″ to 1″)
• Production Speed 5,500 booklets/hr max

Export & Dealer Pricing

Is available, please contact us for details
