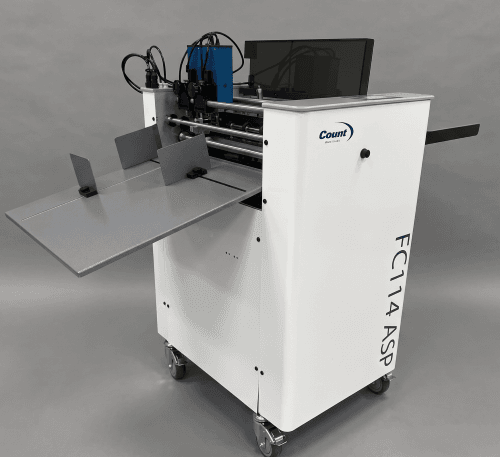

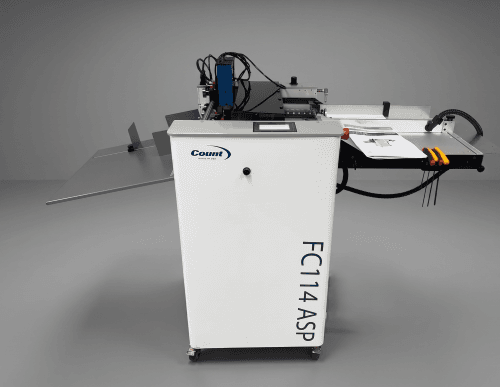

With the investment in a single machine, you can handle high quality numbering, creasing, rotary and strike perforating all-in-one. The FC114ASP has a reliable bottom vacuum-feed system. This machine delivers accurate CAM actuated compression creasing with 2 crease widths, pneumatic numbering up to 24 times virtually anywhere on the sheet, plus perforating, strike perforating, and optional micro-perforating. Strike perforating makes it easy to create custom 2 and 3-part partitions. It’s a compact, incredibly easy to use and highly versatile “all in one” solution that includes automatic “one-touch” set-ups.

Features

• Reliable bottom vacuum feed system with a register guide.
• Simple programming allows you to number, crease or perforate individually.
• Accommodates inline folders like the KF-200.

Creasing

• Ideal for custom two- and three-part partitions.

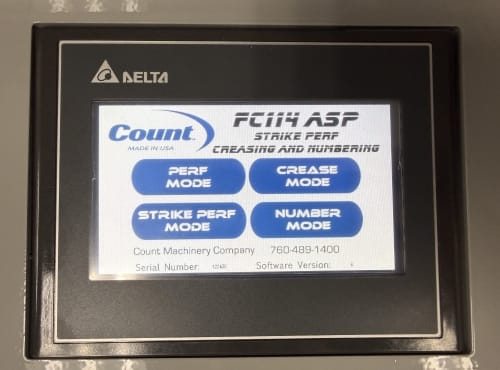

• User-friendly touch screen for easy set up and control of the machine.
• Two-sided die creasing rod accommodates for heavier stock-simply remove and flip over to change from narrow to wide crease.
• Automated distance recognition–allows auto setups for your most common creases and corresponding folds.
• CAM actuated compression creasing.

Perf/Scoring

• Complete strike perforating assembly included, with linear perf capabilities up to 4 strike perfs per sheet-optional micro-perf and score wheel assemblies are available.
• External air compressor is required for numbering and strike perforating.

(Compressor not included.)

Numbering

• Includes reliable pneumatic, Gothic wheel reverse numbering heads–with 7 digits, 4 drop zeros and 4 repeats.
• Flexibility to apply numbers virtually anywhere on a sheet–from lead edge, place numbers within 1 mm of previous number.
• Number single sheets, or crash number up to a 10-part carbonless form.
• Choice of black or red ink, in patented self-inking disposable cartridges–no re-inking required!–for approx. 25,000 impressions per cartridge.
• Program each numbering head individually for multiple numbering.
• External air compressor is required for numbering and strike perforating.

(Compressor not included.)

Specifications
Creasing Speed: 4,500 sheets / hour
Perf/Scoring Speed: 12,000 sheets / hour
Numbering Speed: 8,000 sheets / hour
Feed Type: Vacuum Bottom
Volume: Low – High
Paper Weight: 60 – 350 gsm
Max Sheet Size: 18″ x 24″
Min Sheet Size: 6″ x 4.5″
Power Supply: 110/220 W 50/60 Hz
Dimensions: 63″ x 29″ x 44″
Machine Weight: 222 lbs
Shipping Weight: 515 lbs

PFS standard return guarantee; if not 100% satisfied with this machine, it may be returned for a full refund less actual shipping charges within 14-days of shipment.  Other than the return guarantee, there is no other warranty expressed or implied.

Export & Dealer Pricing – Is available, please contact us for details
