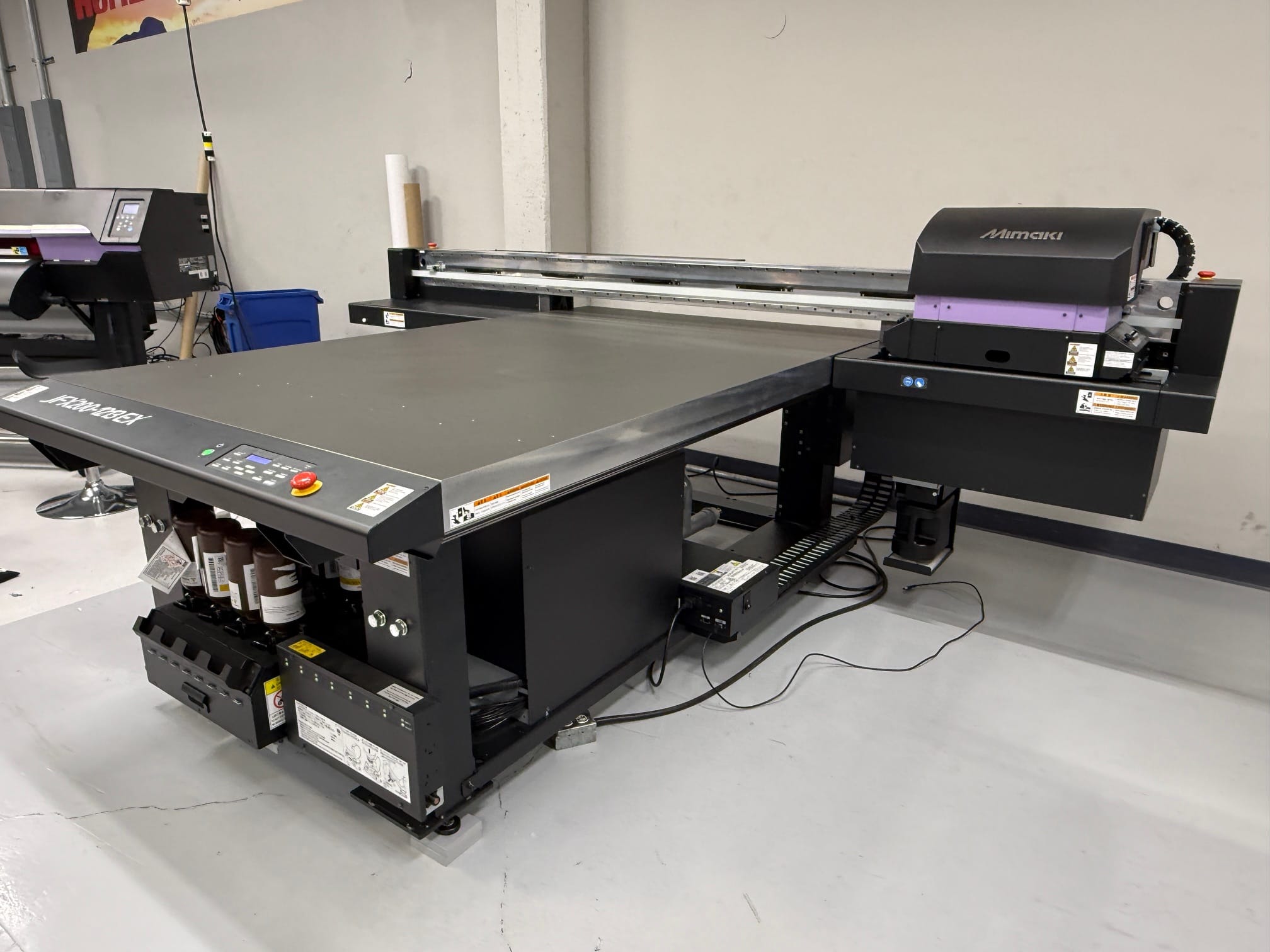

The Mimaki JFX200-1213 EX medium-format UV-LED flatbed printer is engineered for small to medium volume production, offering wide-format printing capabilities in a compact footprint. It meets the needs of print service providers and in-house print shops with limited space, delivering high-quality outputs across various applications, including textured surfaces, ADA-compliant signage, and jig workflows.

• Compact medium format design enables businesses to expand their production capabilities without requiring the space of a traditional wide-format printer.
• High versatility inks for printing to a wide range of rigid and flexible surfaces.
• Capable of producing 2.5D textures and ADA signage.

• Produce medium production volumes, such as printing multiple 18”x 24” signs simultaneously, or jig printing.
• IoT ready, Remote monitoring available through Mimaki PICT software for performance and production monitoring and event notification.
• Uses Greenguard Gold certified inks.

Specifications

Printhead

Three staggered on-demand piezo heads

Print resolution

300, 450, 600, 900, 1,200dpi

Print Speed (4 Color Mode)

up to 269 SqFt/Hr (25 m2/h)

Maximum Print Area

50.0 in x 51.2 in (1270 mm x 1300 mm)

Maximum media area

52 in x 54 in (1320 mm x 1370 mm)

Maximum Media Thickness

up to 1.97″ (50 mm)

Maximum Media Weight

110.3 lbs. (50.0 kg)

Ink Type

Rigid: LH-100 ink; C, M, Y, K, Lc, Lm, W, Cl

Flexible:

LUS-150 ink; C, M, Y, K, Lc, Lm, W with LUS-100 Cl

LUS-120 ink; C, M, Y, K, W, Cl

LUS-350 ink; C, M, Y, K, W, Cl

Interface

Ethernet 10,000 BASE-T

Power Supply

Single phase AC200-240±10% 50/60 Hz±1 Hz x 1

Power Consumption

2.88 kVA or less

Operational Environment

Temperature 68° – 86° F (15-30° C)

Humidity: 35–65 % RH (Non condensing)

Dimensions (W × D × H)

125 in W x 96 in D x 49 in H (3175 mm W x 2450 mm D x 1250 mm H)

Weight

1124 lbs. (510 kg)

Certifications

VCCI Class A, CE Mark, CB Report, US safety standard UL (UL62368-1),RoHS Directive,

FCC Class A, Machinery Directive, RCM

Export & Dealer Pricing – Is available, please contact us for details

Spanish / Español Support – Equipo de Apoyo que Hablan Español de PFS
